!!!! For more information please contact me to my email address : racept@wolke7.net !!!!
The following technical data is from Quaife:

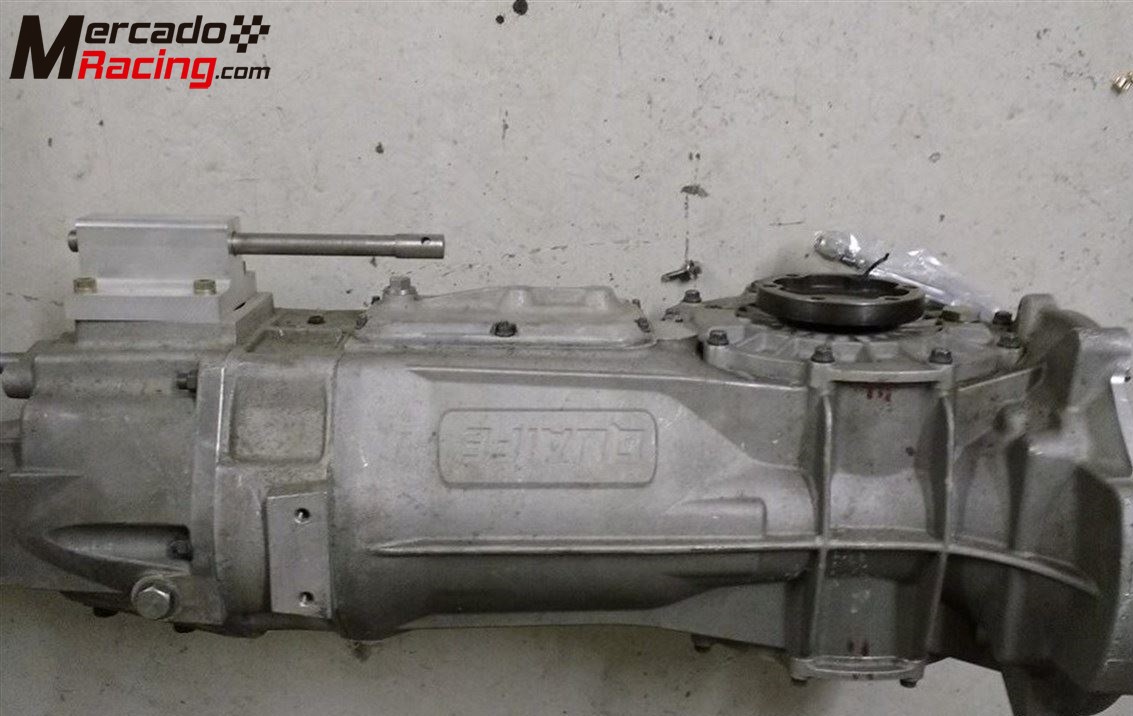

Quaife QTEK 6-speed H pattern transaxle gearbox is a universal fitment for mid or rear engined applications.
Quaife QTEK 6-speed H pattern gearbox is available in two versions: dog engagement with sequential shift, or H pattern with helical gears. (this gearbox is H pattern)
Gears are available in straight cut for race use, or helical cut for road use. (these gears are helical)
Quaife QTEK 6-speed transaxle has a Quaife ATB differential included as an integral part.
Quaife QTEK 6-speed H pattern transaxle gearbox can be run in standard or inverted fitment, depending on the application. The oil pump is incorporated within the transaxle unit.
With the Quaife QTEK 6-speed H pattern transaxle gearbox the crank centre line can be above or below output flange.
The final drive uses a spiral bevel gear.
Quaife QTEK 6-speed H pattern transaxle gearbox includes mounting and suspension pick up points.
Over 15 types of bellhousings available to suit different applications.
Maximum recommended power 450bhp
Weight approximately 65kg
Quaife QTEK 6-speed H pattern transaxle gearbox is ideal for applications such as Lotus Esprit V8, Ford GT, Ultima, Noble etc.
Base set of road ratios: 3.000, 2.000, 1.458, 1.143, 0.921, 0.780
FD ratio 4.111
